Precision rifle gear – The Rifle

Geoff Leave a comment

If you’ve read one of our earlier articles on getting started in PRS-style shooting, or you’ve attended a match or two, you might be considering what rifle you could compete with. I’m hoping to do a few posts on different gear considerations, but this first one will focus around the core of your system – the rifle.

Run what you brung

Don’t correct my grammar, I know “brung” isn’t a word. It just rhymes better. If you are not jumping into your local match because you don’t think you have the right gear, you may be missing an opportunity. If you have a rifle from a different shooting discipline, or even your mountain gun or bush-stalking rifle, bring it along and have a go. As long as your rifle meets the requirement of the shoot (i.e. within any calibre / speed restrictions) and is safe, there are a few reasons you should run it before investing in a new gun.

  1. You don’t know what you don’t know. Once you’ve experienced a few comps or handled and seen other competitors’ rifles, you’ll be able to make a much more informed decision on your first precision rifle purchase – this could save you thousands of dollars, or many hours of heartache and searching the internet for unavailable parts and conversion kits
  2. The sooner you start shooting this style of competition, the sooner you will learn and become more proficient
  3. If you somehow find out this sport isn’t for you (highly unlikely), you won’t have invested time and money in a rifle you won’t use again

So, get stuck in, get to your local match, and start sending rounds down range. Accept the fact that you won’t be as competitive with what you are running (or maybe you will be in a different class / division), and set yourself a goal to learn something from each stage.

Entry level – mid-range

An entry-level rifle is not only a time and money-saver when you get started, but with modern rifles and ammunition standards, might be all you need to be competitive for quite a few years. Climbing the ranks as a shooter is not a gear race (for the most part), and you will find that investment in training, quality ammunition / components, and time behind the trigger, will get you further much faster than buying a gun and scope combo that is more expensive than your car.

If you’re looking for a reasonably priced rifle, the common names in shooting are a good place to start. They have a lot of aftermarket support, which means you will be able to make changes and modifications as you go, such as buying a chassis or finding the right scope base. Generally speaking, you would be looking at Howa (Weatherby Vanguard), Tikka, Ruger, Remington, Bergara or Savage.

Rifles like the Winchester M70, Browning X-Bolt, Mossberg Patriot, Ruger M77 MkII, Ruger American or Savage Axis might all be great platforms to modify, but only to a point. If you have your heart set on one of these for whatever reason, do some research to see if there are sufficient aftermarket offerings to explore down the road. Primarily, this will be around the availability of suitable chassis systems or stocks, scope bases with a bit of cant built in (20 MOA rails, etc), and potentially the ease of changing barrels if you decide you want to rebarrel once you’ve worn out the factory barrel or want to make a change.

Whatever rifle and chassis / stock combo you go with, make sure to consider your magazine system. Having the ability to run 5 or 10 round AICS pattern magazines is almost a requirement for the sport, as you need reliability and (sometimes) a lot of rounds down range really fast. For long action chamberings, your AICS pattern mags will be limited to 3, 5 or 7 rounds in most instances. Generally speaking for practical or precision rifle sports, you want a short action cartridge based on a .308 case.

Back to the rifles we mentioned as good starters, here are some pros and cons:

The Howa 1500 is an absolute workhorse and makes a great practical match rifle with its heavy varmint barrel. Photo credit: Simon Gillice / Gillice Practical Rifle Events

Howa 1500 Short Action

Pros:

  • Can be purchased as a barreled action without stock, saving on cost of parts you don’t need
  • Match rifle variants come with a very suitable heavy barrel profile, threaded muzzle and threaded bolt handle with oversized bolt knob
  • Great aftermarket support from the likes of MDT, KRG, etc
  • Weight adjustable two-stage trigger
  • Reliable function in adverse shooting conditions
  • Best value for money by far

Cons:

  • AICS compatibility can be limited to certain mags (although this is easily remedied with notching out ahead of the feed ramp – best done by a gunsmith)
  • Aftermarket options are good, but not as universally supported as the likes of Tikka and Rem 700 actions (e.g. might be harder to find the trigger you want)



Tikka T3x / TAC A1 / CTR

Pros:

  • Extremely slick action due to tight tolerances, polished finish and unique bolt lug design
  • Universal action length means changing cartridges down the road is relatively easy, even from short action to long action, etc.
  • The action is an excellent basis for a semi-custom rifle
  • TAC A1 comes with a fairly good factory chassis
  • Excellent aftermarket support by most major brands
  • TAC A1 and CTR magazines are fantastic in function, reliability and have a short height for a 10 round mag
  • The T1x 22LR is somewhat compatible with T3x parts and stocks, so a trainer set up replicating your main gun can be achieved

Cons:

  • With the correct bolt stop, the Tikka is an excellent short or medium length action. If you want to change to a long action or magnum action cartridge in the future (e.g. 300 PRC), the action length can be limiting

    Tom S shooting as part of Team Gun Rack at the Tarata Teams Shoot 2022. The Tikka T3x is a slick action and a great basis for a semi-custom gun
  • TAC A1 and CTR mags are stupid expensive
  • T3x variants have very good barrels, but not usually of a profile sufficiently heavy for long strings of fire
  • Tikka barrels can be hard work to remove, but a good gunsmith will help with this
  • TAC A1 scope bases are supplied in 0 MOA and are high above the action, so you will want to change this if you change stocks. They are also somewhat difficult to remove (otherwise a good quality!)
  • A bit on the spendy side

Ruger Precision Rifle (RPR) Short Action

Pros:

  • An affordable package rifle ready to go (when you compare to adding a chassis to standard rifle)
  • Later generations keep modernising, e.g. replacing Keymod forends with M-LOK
  • Limited chamberings, but relevant options for our sport (6.5mm Creedmoor, 6mm Creedmoor, and 308 Win if you don’t like winning)
  • Accepts a wider variety of magazines than most
  • Similarly to the Tikka TAC A1, features a variety of AR15 style controls and components

Cons:

  • Not as refined as the Tikka TAC A1, which is probably the most directly comparable option, but reflective of the price point at 3/4 the street price of the Tikka
  • You will likely want to replace included items like the grip and muzzle brake

Remington 700 Short Action

Pros:

  • The “standard” action shape and footprint, due to its prolific nature and saturation of the US market – the best aftermarket options
  • Most custom actions utilise a Rem 700 footprint,  so accessories and stocks can generally be re-used as you upgrade
  • Training rifles in 22LR such as the Vudoo or Bergara B14R can be equipped with the same accessories and parts to create true trainer systems
  • System is so well known that there is an endless font of knowledge on trouble shooting or improvement
  • Lots of “off the shelf” options suitable for precision rifle shooting

Cons:

  • Varying degrees of quality control and materials / manufacturing over the years, as Remington has had several bankruptcies and new owners. The good ones are good, but it can be hard to know before you spend the money
Bergara is the newest manufacturer on this list, but taps into the existing market presence of the Remington 700 footprint

Bergara B14 HMR Short Action

Pros:

  • A clone of the Remington 700, but generally higher quality – all of the pros and none of the cons mentioned above
  • Factory stock is suitable for field style shooting and is a good compromise / cross-over option when considering precision shooting and hunting

Cons:

  • A bit more expensive – you’re spending Tikka money here

Savage 110 Short Action

Pros:

  • Very accurate rifles at a good price point
  • Good chassis options from the factory, made for Savage by MDT
  • Barrel nut design makes for easy barrel changes in the future – lots of pre-fit barrel options make this a good basis for a semi-custom gun

Cons:

  • Several variations in bolt release over the years – make sure your action is compatible with aftermarket stocks
  • Mag release, bolt release and trigger mechanisms can be a bit “fiddly” (might be personal taste, and my bias here)
  • Aftermarket support is good, but probably not as well supported in the precision rifle game compared to other options on this list

Custom guns

Guns NZ team shooter Graeme running his Curtis Custom Axiom in an MPA set up. Image credit: Dylan Ackley

If you’re looking at the high end of the precision rifle spectrum, you’re likely looking at a “custom” action. Either, you have been in the sport for a while and have a good idea of what you want, or potentially you’re new to the sport, but money is no object and you want the perfect rifle from the outset.

I don’t have much experience with these actions myself, but generally speaking you are buying a Rem 700 SA clone (or variation thereof) which is compatible with Rem 700 accessories and stocks.  The action is going to cost around the price of a whole gun from the previous section, and then you have a choice of barrels. Barrel selection in New Zealand is improving dramatically, but prices are still a bit painful, especially if you are shooting a “barrel burner” of a cartridge.

Typical actions in this category would be:

  • Impact Precision
  • Lone Peak Arms
  • Defiance
  • Big Horn
  • Curtis Custom
  • Surgeon
  • BAT
  • Barnard (NZ)
  • Hardy Rifle Engineering (NZ)

Pair your action with a barrel – it’s helpful for getting bullets down range. You’ll probably encounter these names in barrel manufacturers:

  • Proof Research
  • Krieger
  • Bartlein
  • Criterion
  • Hawk Hill Custom
  • Benchmark
  • True-Flite (NZ)
  • Hardy Rifle Engineering (NZ)
  • Vulcan Barrels (NZ)

Conclusion

For most of us shooting precision rifle sports in New Zealand, gear selection is a bit of a journey, and it kind of follows the sequence listed above; start with the whatever you have, then get a dedicated precision gun at an affordable price point, and eventually spend all the money. If you aren’t sure what is right for you, hop in a comment section on Facebook, it’s always full of helpful information. Kidding! Go to a match – see what there is, talk to people, and see what makes sense for you.

You can always contact us for advice on where to purchase gear. We stock some of the above brands ourselves, or can point you in the right direction.

Free Boyds gunstock this Christmas

Geoff Leave a comment

So, it’s been an awesome year, both personally, and for The Gun Rack. Having recently started importing Boyds gunstocks, it’s been great to bring Kiwis (and the occasional Aussie) a product they haven’t been able to have for a long time (certainly not at a decent price, anyway).

To celebrate the end of an awesome year, I’m giving away one free stock to one of you lucky buggers. If you buy a stock in our next order, you will have a 1 in 10 chance of having the full cost of your stock refunded to you, including the GST and shipping costs.

Lots of pepper in this @boydsgunstocks order! #boyds #wood #gunstock #rifle #pewpewpew #accessorize #laminate

A post shared by The Gun Rack (@gunracknz) on

How will it work?

This is the last order for the year, and I already have 2 out of 10 spots filled (those 2 guys will qualify too). For the next 8 people who jump onto this order, simply:

  • Head on over to the Boyds website and find the stock and upgrade options you want
  • Send me an email with the stock details to get a quote
  • Place your order (this includes payment upfront, as usual)
  • Wait for your awesome stock to arrive, and hopefully for some cash to hit your bank account too!

If you want to read more about the ordering process, head over here, or email me. Unfortunately the stock won’t arrive before Christmas, as it takes a while to manufacture, ship, get through customs, courier, etc. However, if you are the lucky winner, you will get your money back as soon as the order is complete (which will hopefully be before Christmas!).

The winner will be chosen using a random draw method of some description. The decision will be random, and it will also be final (And no correspondence will be entered into, etc, etc,. Basically, I’m giving away something free, don’t be a douche if you don’t win).

Merry Christmas everyone, and thanks for being part of The Gun Rack community and our journey importing Boyds gunstocks into NZ (and AU). I’m hoping in the new year to be bringing in some other cool bits and pieces – will keep you updated on that.

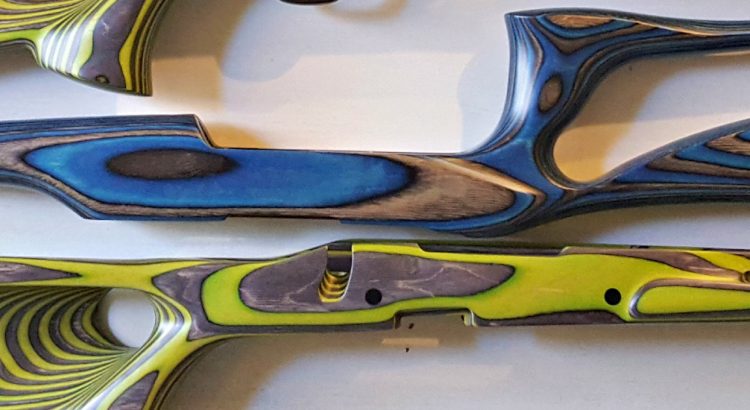

Boyds rifle stocks in New Zealand

Geoff 3 Comments

When I started shooting, I had a penchant for buying budget guns and trying to improve them to compete with much more expensive guns. With some home tweaks, such as trigger jobs and recrowning, a certain level of success could be achieved. The two things I would spend money on would be a good scope, and a stock from Boyds.

While we have access to some great optics in New Zealand, it’s been almost impossible to get a Boyds rifle stock for a long time. With the US$100 export limit on certain firearm-related items, New Zealanders have had to try and buy the cheapest of the stocks on offer, with no upgrades or customisation, or wait for a run-out special that matched their firearm/stock combo. Unfortunately as prices have naturally risen, even the option of squeezing in under $100 has just about disappeared for most items.

Are there any NZ Boyds dealers?

There have also been various businesses in NZ that have had a Boyds dealership at one time or another – but they’ve always been bloody expensive. In many cases, the stocks would have cost more than people had spent on their rifles to begin with – and the options were limited too.

So – we’ve tried to fix this issue.

I’ve long been a fan of Boyds stocks, and you can read about stocks I have used over the years in the product review section of the website. In order to give everyone else access to the same stocks that I’ve really enjoyed using – and at a reasonable cost – we’ve established our own Boyds dealership in NZ.

This Swedish Mauser was my second ever Boyds project, in a Prairie Hunter stock.
This Swedish Mauser was my second ever Boyds project, in a Prairie Hunter stock.

The Gun Rack and Boyds Hardwood Gunstocks

Yup, you can get any Boyds stock you want, with any customisations. There’s no federal export limit, and you don’t have to pay a retail store half of the deposit of an Auckland 3-bedroom house either. In fact, we can get you a basic Boyds stock, delivered to your door, for around NZ$525. If you want to spend more and get an adjustable comb, custom colours, change the LOP, or whatever, you can do that too. We’re also able to sell the At-One stock, at around NZ$640, delivered.

So, how come we’re able to do this? Well, we can bring in the stocks because we have a federal export licence from the US government, specifically for Boyds stocks. And how do we do it so cheaply? Quite simple. We’re not greedy. We make a very small amount of money on each stock, and that money means I can buy ammo and other bits and pieces to keep this website going. I’m much more interested in bringing something cool to NZ shooters than I am in making a shed load of money.

If you want to order a Boyds stock, you can email me at info@gunrack.co.nz or head over to the Boyds page on our website to learn more.

How to disassemble small ring Mauser bolt

Geoff 2 Comments

Removing and disassembling the bolt of a Swedish Mauser is a pretty simple affair and may need to be undertaken for any number of reasons. Most commonly, you’ve picked up a rifle nearing a century in age, and there’s a lot of gunk and crap in there that needs to be cleaned out. The other scenario is that you could be modifying your bolt to cock on close, or reduce lock time with lighter materials and a stronger spring.

Hopefully if the latter is your reason for stripping a Mauser bolt, you’ve inherited or bought a sporter – there are fewer and fewer whole specimens left.

Below are a series of pictures showing how to disassemble a Mauser bolt (small ring, not a K98). If your bolt looks different, don’t fret. This is from a commercial rifle, not a military conversion. It has a blued finish and a bent bolt handle, which thankfully clears my Weaver 44/40 scope, thanks to an EGW 20 MOA rail. If you’re wondering how the extra height affects consistent cheek weld and sight lines, a Boyds stock with adjustable cheek rest helps out there.

Step 1 – Get the firing pin out of the bolt body

After checking the rifle is unloaded, close the bolt fully.
After checking the rifle is unloaded, close the bolt fully.
Lift the safety lever into the upright position and remove the bolt without lowering the safety. You may need to remove your scope if the safety won't clear it.
Lift the safety lever into the upright position and remove the bolt without lowering the safety. You may need to remove your scope if the safety won’t clear it.
The bolt shroud should easily unscrew from the bolt body now. Note the cocking piece is held under spring tension by the safety lever.
The bolt shroud should easily unscrew from the bolt body now. Note the cocking piece is held under spring tension by the safety lever.
The firing pin separated from the bolt body. Again, note the spring is locked back - if you don't do the next step carefully, the spring, cocking piece, and firing pin could separate with a fair amount of speed and force.
The firing pin separated from the bolt body. Again, note the spring and firing pin are locked back – if you don’t do the next step carefully, the spring, cocking piece, and firing pin could separate with a fair amount of speed and force.

Step 2 – Separate the firing pin from the bolt shroud

Find a hard surface you don't mind denting. Or, if you have an original stock with brass disc, you can use the indent for this step. With the firing pin against your hard surface, force the bolt shroud downward. The safety lever provides a good amount of purchase.
Find a hard surface you don’t mind denting. Or, if you have an original stock with brass disc, you can use the indent for this step. With the firing pin against your hard surface, force the bolt shroud downward. The safety lever provides a good amount of purchase.
Twist the cocking piece 90 degrees. At this point make sure you have a firm grip on the bolt shroud and firing pin, and slowly release the spring tension to avoid sending pieces flying.
Twist the cocking piece 90 degrees. At this point make sure you have a firm grip on the bolt shroud and firing pin, and slowly release the spring tension to avoid sending pieces flying.
Fold the safety lever all the way over and pull it back to separate it from the shroud.
Fold the safety lever all the way over and pull it back to separate it from the shroud.
Shroud, cocking piece, spring, safety lever, and firing pin.
Shroud, cocking piece, spring, safety lever, and firing pin.

Step 3 – Remove the extractor from the bolt body

Note the extractor sits in a groove just before the bolt face.
Note the extractor sits in a groove just before the bolt face.
Rotate the extractor about 90 degrees so that it exits the notch.
Rotate the extractor about 90 degrees so that it exits the notch.
Apply downward pressure with your thumb, as you slide the extractor forward. Remember this sweet spot, as you'll need to apply pressure in the same spot to get the extractor back on.
Apply downward pressure with your thumb, as you slide the extractor forward. Remember this sweet spot, as you’ll need to apply pressure in the same spot to get the extractor back on.
Getting this collar off is easy, but you will stretch it as you do so. A flat screwdriver can be used to pry it open if needed. Getting it back on once it has been taken off is harder, and a vice of some sort will be handy, as you'll need both hands to get the extractor back on.
Getting this collar off is easy, but you will stretch it as you do so. A flat screwdriver can be used to pry it open if needed. Getting it back on once it has been taken off is harder, and a vice of some sort will be handy, as you’ll need both hands to get the extractor back on.
When reassembling the bolt, getting the extractor onto the collar is probably the hardest bit. If you have locking pliers or a small vice, it shouldn't be hard to slide the notch on the underside of the extractor onto the collar. Remember where you applied downward pressure to remove the extractor - this is the same spot you need to apply pressure to as you slide it back on.
When reassembling the bolt, getting the extractor onto the collar is probably the hardest bit. If you have locking pliers or a small vice, it shouldn’t be hard to slide the slot on the underside of the extractor onto the collar. Remember where you applied downward pressure to remove the extractor – this is the same spot you need to apply pressure to as you slide it back on.

From here on, the rest of the reassembly is easy, and is simply the reverse of the above.

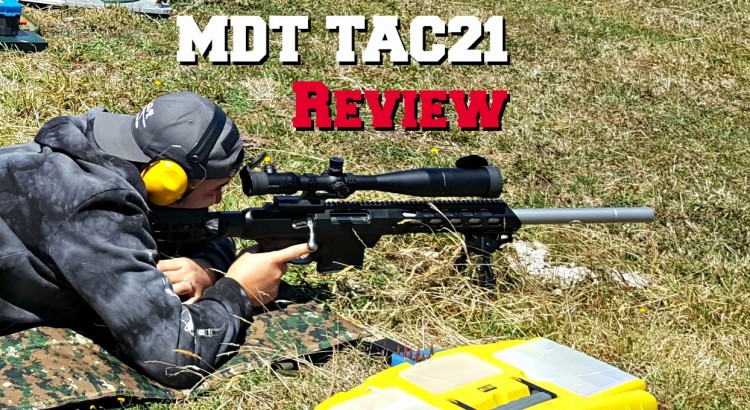

Product review: MDT TAC21 Chassis for Tikka T3 long action

Geoff 2 Comments

Chassis systems have really come to the fore in the past few years, as tactical and precision rifle shooting has gained a larger following. Throw in lots of product innovation and modularity, and you’ve got a recipe for success.

There are three rifles that usually get the royal treatment, and have chassis built for them by most major manufacturers. Namely, the Remington 700, Savage 110, and the Tikka T3(x). The Howa 1500 usually features too. If you’re looking for a chassis for any of these rifles, you’ll have plenty to choose from. Having looked around the market, I decided to to give the TAC21 chassis a go.

The reason the TAC21 really stood out as a potential option for the build I was working on, was that the forend came off as a separate piece, but still had a continuous Picatinny rail. This was particularly important for me, as my Tikka T3 in 6.5×55 has a full over-barrel MAE suppressor that comes right back to the action. It has a 1.26″ OD and would need to be removed after every shoot to get gas residue and powder fouling off the barrel and crown. The TAC21 looked like it was up for the task – and it sure looked a lot easier than taking my rifle out of its standard stock every time I left the range.

The TAC21 by Modular Driven Technologies (MDT). Note the dimensions are for a Remington 700 SA. [Image credit: MDT]
The TAC21 by Modular Driven Technologies (MDT). Note the dimensions are for a Remington 700 SA. [Image credit: MDT]
So, after deciding on a chassis, MDT offered us one to review. This is always a good sign – when a manufacturer stands by their products enough to let them out into the wild with reviewers! So, after customising my order on the MDT website, it was time to wait for it to be shipped to NZ.

The agony

Nothing is more painful than having a cool new toy come from across the world, and not knowing when it will arrive!

Compounding my dilemma was the fact that it was a Tikka T3 long action. This meant that standard AICS mags would not work, because of the shorter magazine port. MDT makes their own magazines, in metal. They are Cerakoted the same colour as the chassis too. Unfortunately as I placed my order, they were out of stock and back ordered, so I waited “patiently” as they made up some new ones.

When the rifle did arrive, I happily single-loaded for a while, until the magazines were ready.
When the rifle did arrive, I happily single-loaded for a while, until the magazines were ready.

However, this was all mitigated by the fact that MDT’s staff are perhaps the best human beings on the planet. I judge a company a lot by how they treat their customers, and MDT tops the charts in my books. The only other company that would share that rank would be Vortex. And when it comes to some of the really big bullet and component manufacturers, I can tell you, your concerns are right at the bottom of the pile with them.

You may think I received special treatment as a reviewer and that my experience is not really a true customer experience. Well, the first person I spoke to knew I was a reviewer – the other two people did not. So, I’m comfortable standing by the statement above.

The best day, was when I inquired after progress on the mags, and was told they were a few weeks out still. How was this the best day? The kind lady at MDT offered to send my entire order ASAP, and then expedite the magazines to me when they were available, at no charge.

To which I said ‘Yes’. Very much yes.

I really wanted to give this chassis a thorough testing, and I didn’t mind single-loading for a month or so if I had to. And I’m glad I did, as this gave me a chance to work through some of the unique aspects of the system, and also take it along to some cool events, such as the Long Range Fundamentals course with Kerry from Precision Shooter.

15992024_10154688046896357_489822583_o

First impressions

I cannot overstate how excited I was when I opened my package from Canada. But I unfortunately couldn’t use it straight away, as I was sighted in and good to go for my first F-Class shoot. After I attended that shoot with the Franklin Rifle Club at 600 metres, I got home, stripped and cleaned the rifle, and got busy putting it into the TAC21 chassis.

The first thing I noticed was that the solid aluminium chassis and Skeleton Rifle Stock added a good deal of weight. This was ideal for my purposes (an F-Open build), where extra mass means more stability and less felt recoil. If you’re after a lighter chassis system, for more run-and-gun shooting sports, look at the LSS or HS3 chassis by MDT – many of the same benefits as the TAC21, but much lighter by design.

Assembly

I won’t go through how to assemble the product – it’s pretty easy, and there are step-by-step instructions included. There are also some Youtube videos out there if you’re a visual learner.

While I was putting the rifle together I immediately noticed a few points. This chassis is not carelessly designed. There are some very obvious cutouts and reliefs specifically for my Tikka, where a Remington or Savage would have a different layout (bolt stops, safeties, etc.). Instead of finding a way to cookie-cutter design this chassis, they designed it around the actions they wanted to house, and did so with a high degree of accuracy and utility in mind.

The safety is easily accessible, and there is nowhere for the bolt to hang up. The bolt stop/release has its own little slot in the aluminium housing (they provide a longer retaining pin for this), and there’s even a window cut into the side so you can see your serial number. That last detail impressed me as an extra little bit of thoughtfulness.

The MDT 300 WM metal magazines give you an extra 1 - 2mm to play with.
The MDT 300 WM metal magazines give you an extra 1 – 2mm to play with.

Other things to note… The Tikka’s free-floating recoil lug has just been upgraded for you. The chassis comes with a steel lug, that is far superior to the soft, aluminium one that comes standard on the T3. You’re also completely replacing your trigger guard and mag well, so this means you can’t use your factory mags. This is no problem though, as the factory magazines are always too small in capacity and never long enough to load out to the lands for you reloaders.

The MDT Tikka T3 LA magazines are solidly constructed out of steel, and designed for cartridges up to .300 WM. You can bend the feed lips to suit your round. I lightly bent the lips on my two magazines to get a grip on my 6.5×55 cartridges. I could have bent them over a bit more, but I found them tight enough that nothing would knock the rounds out unintentionally, and I could get 6 rounds per mag instead of 5. This is ideal for the F-Class shooting that I’ve been doing, where you shoot your 24 rounds in 2 details of 10 scoring shots and 2 sighters. This means only one mag change per detail, rather than the four mag changes I was having to do with the factory magazines.

Mail day! Thanks MDT! #nomoresingleloading

A photo posted by The Gun Rack (@gunracknz) on

The forend snugged up nicely to the body of the chassis – the offset screw holes helping to lock it in place. The rail on top truly was continuous, with perfect machining. The attachment of the forend is one of only two improvements I could think to make to this design.

The screw in the top rail could be hard to get to, depending on your scope/mount situation. I actually found I could just clear the scope with an allen key and remove the forend when necessary. Although most shooters would not need to remove this piece as often as I would, to clean under the full suppressor.

As I said - just enough space with my setup. Note the screw holes on the side for attachment of 1913 rails.
As I said – just enough space with my setup. Note the screw holes on the side for attachment of 1913 rails.

I would perhaps have done two screws on the diagonal sections between the rail (top) and the sides, rather than have the screw on top. I would rather have four screws to undo, than potentially have to take off my scope if I needed to work on the barrel exterior. However, I am no engineer, and aside from the extra labour and materials that would be required, I couldn’t tell you if my idea for fixing the two pieces together is anywhere near as good as the original design (in terms of robustness, etc.). So, a grain of salt and all that.

The other thing that I think would improve this design (for the Tikka shooters amongst us), would be replacing the bolt stop/release with an aftermarket one that sticks out further. It can be a bit finicky to get the bolt out, but certainly not to the point where I would say it is a flaw in the design. Just an area that could be improved – and perhaps this is an area for the end user to look at.

The Tikka T3 bolt stops differ from calibre to calibre. This allows to Tikka to produce a more uniform action, cutting down costs. I imagine it would be quite an undertaking to design, make and stock all of the possible options. However, if you look around, some machine shops and gunsmiths do make aftermarket versions out of steel or what-have-you, so it could be something to look at if you have fat fingers like me.

Breaking her in

This rifle has become my main centrefire rifle over the past few months, and I’ve enjoyed every minute of it. I did have some frustrations at the start, and we’ll go through how to avoid these yourself.

Scope mounting. If you have a large objective lens (which you likely do if you want a chassis for your shooter), it will not clear the full-length rail on short or standard rings. Unfortunately my Vortex precision-matched rings were 1mm too short to clear the chassis, so I hopped onto the Optics Planet website and set about ordering a one-piece riser, to get some more height.

I was told the riser I wanted was considered an AR-15 part, and therefore couldn’t be exported from the US. Annoying, but rules are rules. They gave me a couple replacement options and I went with a pair of quick detach risers (ironic, as these seem much more suited to an AR, but anyway).

So, I mounted my Vortex Viper PST 6 – 24 X 50, and hit the 100 metre range at Waiuku Pistol Club. I almost cried. My rifle, which was shooting handloads into 0.2 MOA groups was now double grouping and doing just under 1.5 MOA. I felt sick to my stomach at the thought of having to do this review, with such a negative result.

After burning through around 50 rounds of pricey handloads, hearing comments like ‘shooter error’, I was ready to go home. I took the chassis apart to wipe the barrel down and noticed the QD riser at the front had worked loose, and must have been shifting back and forth a minuscule amount under recoil. Feeling like an idiot, but a hopeful idiot, I went home to reload some more rounds and hit the range the following weekend.

Thankfully I have a 2-inch offset cantilever ring mount, provided by Vortex for an upcoming review on their Strike Eagle scope. I switched this in and patiently waited another week to get to the range. With the cantilever mount, the centre of my scope now sat about 2.5″ above the centreline of my bore. Not a major problem, except this will accentuate any user error involving cant. I would suggest getting a bubble level to ensure vertical alignment to the target. If you’re into long range shooting, you probably have one already.

Thanks to Vortex I had an offset mount on hand. Note the height off the barrel.
Thanks to Vortex I had an offset mount on hand. Note the height off the barrel.

Another almost negative was that I found the latch that secured the Skeleton Rifle Stock to the chassis to be very stiff. I spoke to MDT and sent them some photos, of where paint had scraped off the housing for the latch’s retaining pin, indicating it was having trouble camming fully over.

This tiny build up from initial use was making it difficult to connect the chassis and stock. It didn't take long to sort it out though.
This tiny build up from initial use was making it difficult to connect the chassis and stock. It didn’t take long to sort it out though.

The MDT staffer said that a break in period could be expected, as the part was machined to tight tolerances to ensure a tight fit for the life of the rifle/chassis. He offered to send me another latch pin, free of charge, so I could polish down my current one, and use the new one after it had broken in. I said thanks, but no thanks. It wasn’t worth wasting their time and money if it was such a simple solution.

To ‘speed up time’ with my break in period, I gave the latch a couple hard taps with a wooden dowel and a rubber mallet. It now works perfectly.

The Skeleton Rifle Stock V4 is heftier than it looks, and features adjustable LOP and comb height. There's also mounting points for a rail at the bottom, to attached a monopod.
The Skeleton Rifle Stock V4 is heftier than it looks, and features adjustable LOP and comb height. There’s also mounting points for a rail at the bottom, to attached a monopod.

Findings

The TAC21 is designed to take your rifle from factory to precision with very little effort. Bedding is one of the most important aspects of increasing the accuracy of a rifle, and MDT makes this easy. The action only touches the V-bedding in a few spots, and with incredible repeatability and sturdiness. The forend leaves your barrel completely free-floating, for any barrel less than the diameter of the action.

If I had started with an out-of-the-box rifle with factory ammo, I would have expected to see dramatic gains in accuracy. MDT claims up to 28% increase in accuracy, and I can believe that, looking at the design.

Taking an already accurate rifle and putting it into the TAC21 chassis system, what I was looking for was accuracy (repeatability of shot placement – not smallness of group size).

With scope now properly mounted, I was surprised to find there was hardly any POI shift from the 20 MOA Nightforce rail that was mounted to the Tikka action, to the 20 MOA rail integral to the action housing on the MDT chassis. It was literally a couple of clicks to get centre at 100 metres.

With factory ammo, I noticed accuracy was perfect. I had my doubts and expected I might get some shift in POI due to the optic being mounted to the chassis and not the rifle, but the repeatability was there. I had less than a full box of Norma ammo, so didn’t do too much grouping, but did notice a decrease in group size as well, by about 0.1 – 0.2 MOA, down to an average of 0.7 MOA.

Profile of the MDT TAC21 and Tikka T3.
Profile of the MDT TAC21 and Tikka T3.

My personal handload featuring Norma brass, 143 gr Hornady ELD-X projectiles, Federal Gold Match LR primers and ADI AR2208 powder (Varget) was just as repeatable.

As I mentioned before, repeatability was the test here, not smallness of group size. My handloads were tuned specifically to my rifle as it was, and this testing was done with the exact same load, with no further adjustment. It wasn’t shooting 0.2 MOA anymore, but it was shooting a consistent and repeatable 0.6 MOA.

Why did my handload group size increase, while the factory ammo groups decreased in spread? I suspect the bedding of the rifle worked its magic on the factory ammo, which is made to much lower tolerances than my reloads – and therefore could really benefit from the improved bedding.

I suspect my handloads increased in group size because the tension on the action has changed – almost double the torque to secure the action to the aluminium chassis, compared with the factory plastic stock. I imagine this has changed the harmonics somewhat. To reduce my group size again, I could either move my charge weight up or down a small amount, or I could play with seating depth.

Even at 0.6 MOA I was happy to take this rifle out to an 800 metre shoot, and it did quite well. Note if you use a rear bag, the inline stock will be higher off the ground, so you may need a bigger bag.
Even at 0.6 MOA I was happy to take this rifle out to an 800 metre shoot, and it did quite well. Note if you use a rear bag, the inline stock will be higher off the ground, so you may need a bigger bag.

The latter is now a much more distinct possibility, as I have an extra 1.5mm of mag length to play with. I hope you haven’t got this far into reading this (fairly lengthy) article, and believe the increase in group size is an indication of negative performance on the part of the TAC21 chassis. As mentioned above, this is purely a function of my handloads being tuned to the rifle as it was.

With a bit more time to play around, I expect I’ll get this rifle back down to its 0.2 MOA capability, while enjoying the modularity of the rifle and ergonomic bliss that comes with having the action and butt stock inline. Just quickly, these are the features that I really like about the MDT TAC21:

  • V-bedding block for increased accuracy and decreased points of contact
  • Thoughtful design
  • Included recoil lug
  • Straight-line design to absorb felt recoil and decrease muzzle flip
  • Full length top rail – 20 MOA too!
  • Plenty of places to add a Magpul rail or two for your bipod, monopod, laser, printer, coffee maker, whatever…
  • Sling swivel stud included for bipods, but easily removable for rail mounted varieties
  • Excellent finish of hard anodizing plus Cerakote in your preferred colour – I had no marks on the stock after months of use, except for where the QD riser was loose on the top rail, and a couple points in the butt stock attachment area, that are not visible anyway when the rifle is assembled
  • Huge tolerance for barrel size, meaning you can have straight no-taper barrels, massive muzzle devices, whatever you want
  • Decent amount of weight for prone shooting and recoil reduction, but light enough to lug around a bit if necessary
  • It looks fantastic, and your factory rifle can play with the RPRs and HCRs and whatever else is on the firing line
  • Better magazine options

If you want any more convincing, head along to the MDT website and check out the customer reviews for this product. You will see exactly what I have experienced. Great product, fantastic service, and an all round improvement in your rifle.

Product review: Boyds Field Design stock for 303 SMLE

Geoff 11 Comments

Anyone who follows The Gun Rack on Instagram or Facebook has seen sneak peeks of a very green 303 over the past few months. I’ve really taken my time on this particular gun build, and subsequently the review of this stock, but here it is – The Gun Rack official product review of Boyds Gunstocks’ stock upgrade for the British Lee-Enfield series of rifles.

Guess which firearm is getting a makeover?

A photo posted by The Gun Rack (@gunracknz) on

The build…

This particular rifle is a quiet bush monster. Monstrous in appearance, but suppressed and subsonic in its implementation. There’s a lot that’s gone into this particular rifle, so – fittingly – we’ll do an entire article covering the various bits and pieces, and the decisions that led to each of them.

One decision that was, unfortunately, made for us, is that I’m no longer going to have the rifle Cerakoted, as a dear and valued member of the NZ shooting community, Victor Alberts, passed away recently while on holiday overseas. Victor was the applicator and artist behind Cerakote NZ, so necessarily we’ll be looking to sort out some other means of protecting the metal on this bush gun.

The rifle that defended the free world – twice

The Short Magazine Lee-Enfield (SMLE) rifle was featured in both world wars and a host of conflicts all around the world. Its younger brother is only now being phased out of service with the Canadian Rangers, who will have a locally made, licensed version of a Sako product (T3 CTR). Other weapons have been trialled, but none compared to the reliability of the Rifle No 4 Mk 2 (since 1941 – not bad).

Even still, the old Lee-Enfield is a devastating tool in the hands of irregular forces around the world, who do not have access to more modern weaponry, or who perhaps have an abundance of old Commonwealth stock. With ballistics and firepower not too far off the .308 Win, it’s not hard to see why the rifle has kept pace.

Anyway, I digress. So, this stunning piece of history came to my possession in a sorry state. Which is okay, as I was keeping an eye out for an old beater that could be beautified without destroying a battlefield artifact.

My 1943 SMLE (above) was in a sad state when I bought it - compared to my 1942 (below) which will stay unchanged.
My 1943 SMLE (above) was in a sad state when I bought it – compared to my 1942 (below) which will stay unchanged.

One of the problems with using a wartime rifle (1943), that was mass-produced with unique ‘improvements’ and variations across the world, is that you are bound to run into quality issues. In contrast, I do have a 1942 Lithgow rifle which is beautifully symmetrical and well-machined (even if it is left a bit rough in some areas). But this made-in-Britain wartime specimen is a product of its environment, and loose tolerances, rough surfaces, and poor bluing are to be expected.

In hindsight, I really wish I’d done this build off a Rifle No. 4 instead of an SMLE No.1 Mk iii, as the action lends itself to being rebarrelled to higher-power cartridges, but that may have taken this build in another direction altogether.

If you’re considering a build on a No. 4 or even No. 5 action, Boyds thankfully caters to those, too.

Taking apart the two-piece stock

The Lee-Enfield is everything a modern precision rifle is not. It’s not free floated, the stock is not a single piece and and the ergonomics are all wrong. However it was well-suited to winter clothing and putting a lot of lead downrange, so we can’t really judge the designers for that.

The two piece stock is easily taken apart with some screwdrivers, and potentially a socket driver if you don’t have a really long flat head screwdriver. Check out the easy tutorial here (with lots of pictures!).

Not many rifles will have the trigger come out with the floor metal.
Not many rifles will have the trigger come out with the floor metal.

Fitting the Boyds Field Stock Design

Final fitting will be needed.
Final fitting will be needed.

One thing I love about Boyds stocks is seeing the precision lines in the inletting. Now. Take a look at your naked Lee-Enfield. There is not a single square section on that thing. Because the action has so much inconsistency in shape and finish, I spent a fair bit of time sanding and filing around the top of the action and inside and around the sear and trigger slot.

The area around the mag well also needed some relieving of material to get the floor plate sitting properly again, which allowed the barrel channel to move into the appropriate position.

I found it really useful to mark the action with engineer’s blue (a permanent marker will do), to find the high spots on your action that necessitate removing some more wood.

Please be careful removing material, as it’s a lot easier to take off than it is to put on! While I say I spent a lot of time on this, that doesn’t mean I shaved off a lot of the laminate. Rather, I spent a lot of time making sure I didn’t take off too much, so I could still have a snug fit.

When fitting the butt stock, shaving off a small bit of wood off the top of the donut-shaped insert allowed the laminate stock to snug up nicely when I tightened the bolt. However, on the forend side I found there was a bit of a gap between the wood and the characteristic steel band which forms the rear of the receiver and separates the forend and butt stock. I had a shooting buddy of mine machine up a shim to bridge the gap. He put in some counter sunk holes so that I could screw it into the stock once I had all of the metalwork (including the shim) coated, however it’s so far been held in place by friction and is doing just fine.

The shim held in place by friction fills a small gap between action and stock. once coated with the rest of the metal work it will blend in well.
The shim held in place by friction fills a small gap between action and stock. Once coated with the rest of the metal work it will blend in well.

The gap between the forend and steel band I’ll put down to variance between manufacturers of rifles over time. I measured this strip of metal on my two SMLE rifles (one year apart, but one from Australia and one from the UK), and found a 1 mm – 2 mm difference in broadness.

You will definitely need to take out some wood where the rear ring of the receiver interrupts the line of the stock, and also where the safety lever goes in the forward position.

A radius and a square cut will make room for the safety lever and the rear action ring.
A radius and a square cut will make room for the safety lever and the rear action ring.

Positives of the Boyds Field Stock Design

If you’re looking to improve your Lee-Enfield Rifle or SMLE, you have three options:

  1. Restore the wood with new old stock or modern replicas (on a No 4 this is feasible, on a No 3, near impossible)
  2. Put it in a plastic stock, which will reduce weight, but will deliver more recoil, and increase your noise in the bush with its hollow construction
  3. Choose a hardwood/laminate solution

I’m assuming you landed on option 3, which is why you’re here. The hardwood solution is not only inline with the character of the gun, but also just feels right. I have a couple battle rifles in modern plastic stocks, and I’m too embarrassed to take them to the range, and too put off by the handling and feel to really enjoy them.

The Boyds Field Stock Design (and any of their stocks, really) is a re-imagining of the stock design based around the action and the shooter, not simply a replacement of the existing furniture. This means you can expect an increase in accuracy, stemming from various feature improvements, such as a better inletting, length of pull, cheek weld, positive grip characteristics and also added rigidity when compared to plastic aftermarket (or even original manufacture) stocks.

Line of sight

I found that the Boyds stock in particular raised the eye-line perfectly for the old rifle. With the original stock, if you try and get a positive cheek weld, you’ll be looking at the top of the action. You have to raise your head a bit and compromise your repeatable position on the rifle in order to see the iron sights.

Lining the two up by the rear of the bolt, the difference in drop is quite evident, as is the angle of the butt pad - both changing the handling characteristics of the gun.
Lining the two up by the rear of the bolt, the difference in drop is quite evident, as is the angle of the butt pad – both changing the handling characteristics of the gun.

With the Boyds stock, the decreased drop on the comb means you are looking straight at the iron sights. If you had a low mounted scope, you could use this quite easily with little compromise in cheek weld. I have a Vortex Razor HD red dot sight mounted on mine, which, unfortunately, means added height to the optic. However, this doesn’t bother me because, with its unlimited eye relief, I can have my head just about anywhere on the stock and still have an accurate sight picture.

Solid construction

The Boyds stock is not only solidly made with highly advanced resins, but it feels more substantial when you’re shouldering or handling the rifle. The forend fits an adult male hand well, unlike many skinny stocks, where your fingers will wrap around onto the barrel if you’re not careful. It’s also beefier at the butt end. This is in contrast to the original skinny grip that would have been perfect for gloved hands in the trenches, but not user friendly for acquiring a positive grip in the hot bush and forest we often hunt in.

The slight increases in length, width and girth, add up to a much better length of pull and trigger/bolt manipulation characteristics, without increasing the overall length by much at all.

Choice

If you’re pulling apart an old rifle like this to do something special, why not make it truly one-of-a-kind? From the standard colours offered by Boyds, the Pepper laminate is a sexy rendition. Black and charcoal – it modernises any firearm, while still retaining the warmth of wood. There is also a straight walnut stock if that’s your preference.

The 'Scale' laser engraved chequering adds aesthetic appeal, visual depth, and enhanced grip characteristics.
The ‘Scale’ laser engraved chequering adds aesthetic appeal, visual depth, and enhanced grip characteristics.

I chose a Zombie Hunter custom colour for an extra US$16.50, and my rifle stands out like no other. It’s an attention grabber at the range, and it just looks freaking cool. It’s one of those guns you want to take out and shoot, regardless of whether you’re actually working on a load or hunting or just plinking. I might burn through a lot more ammo just because she looks ‘cool’, but that’s okay. Not to mention, everyone else wants a go at it, too!

I also asked for some chequering on the stock, specifically the ‘Scale’ pattern. It’s laser engraved, and absolutely perfect. It adds some extra grip (of course), but also adds depth to the appearance of the rifle. There are a couple other options to choose from as well.

While you’re at it, you could also look at a custom finish, or a different butt pad option to tame your heavy-hitting wildcat magnums.

Negatives

Hey, nothing’s perfect, and there always have to be some negatives.

My only regret on this build (regarding the stock) is not having sling swivel studs, as a sling will be essential for crashing through some of our heavy NZ bush. However, I’m sure Boyds would have included some had I actually thought to ask. Not to worry, I do have some spare, but that’s definitely something I’ll think about next time. More a mistake on my part than a negative with the stock.

There is one negative, and again, it’s not actually a fault of the Boyds Field Design Stock: It’s the rifle. There is no way on God’s green earth that you will have a perfect fit. Unless you own the Boyds’ house action that they model their stocks off.

There is so much variation in fit, quality and manufacturing tolerances between these old war time rifles, that I can almost guarantee some work for you with sandpaper and a file or two, no matter what brand of gun stock you choose. However, if you’re restoring or upgrading any milsurp rifle, this should be something you expect along the way, so don’t let this put you off.

If hard work is not your cup of tea, there are plenty of modern actions that are very uniform and require little-to-no work to customise. Thankfully, Boyds makes stocks for those rifles, too!

sexy

Conclusion

At the end of the day, I’ve found (once again) that the Boyds product is a substantial improvement on the original stock that came on the gun. Not only this, but dollar for dollar, I can’t imagine another aftermarket stock coming close.

The customisation options offered by Boyds are a real bonus for anyone looking to increase the appeal of their old shooter, and the standard options are plenty for those who don’t like drawing too much attention to themselves or those who are watching their budget.

Would I buy it again? Yes. And I guess that’s the highest recommendation someone can give after thoroughly testing a product.
